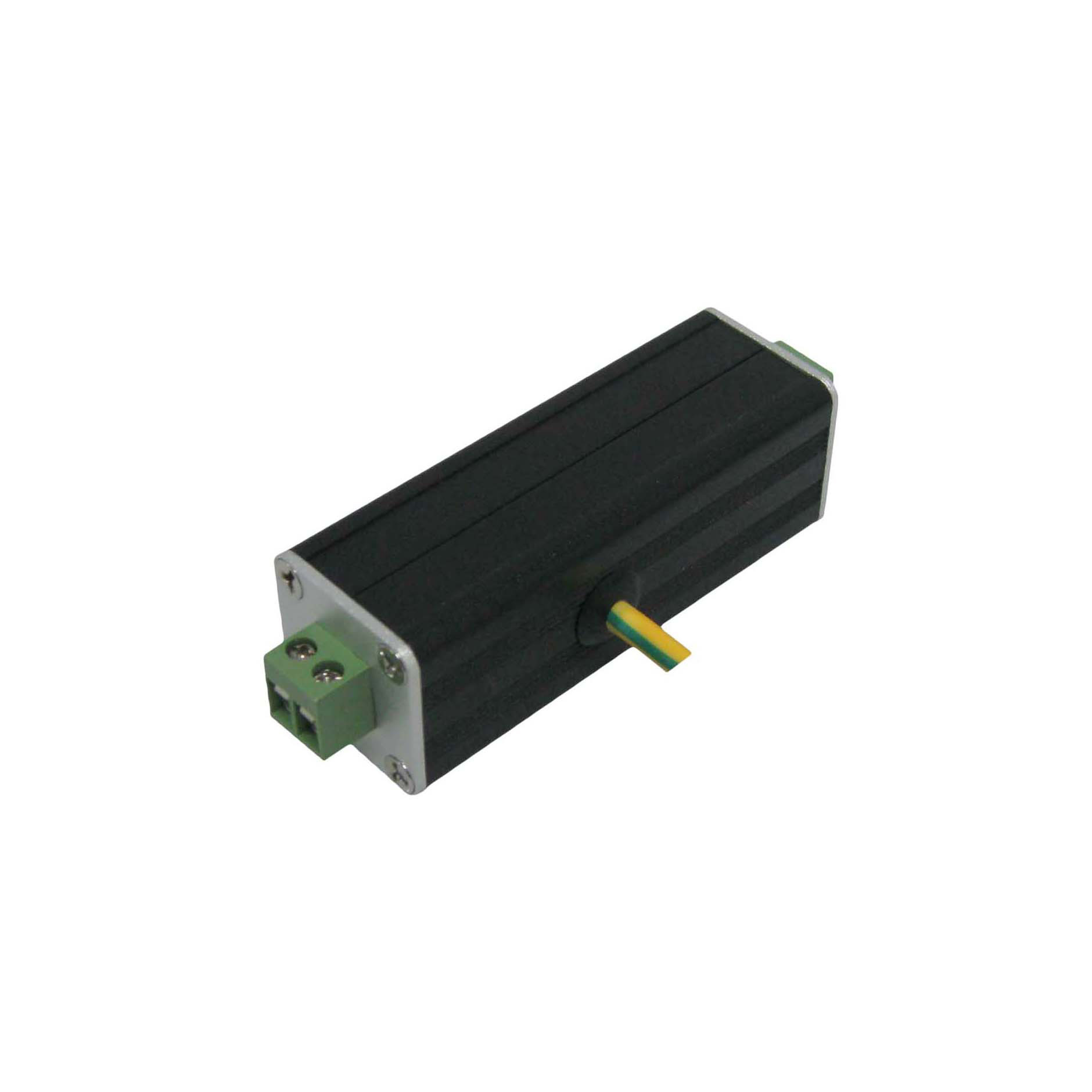

Aluminium Alloy Network Surge Protective Device Signal Surge Protector

Name: Aluminium Alloy Network Surge Protective Device Signal Surge Protector
Brand: BRITEC
Price: 1 USD

Buy cheap Aluminium Alloy Network Surge Protective Device Signal Surge Protector product

Brand Name : BRITEC

Model Number : BRGI-2L-12

Certification : CE

Place of Origin : Zhejiang, China (Mainland)

MOQ : 20 Piece/Pieces

Payment Terms : T/T

Supply Ability : 50000 Piece/Pieces per Month

Delivery Time : Shipped in 15-30 days after payment

Packaging Details : EXPORT PACKING

Standards : IEC 61643-21

Item Name : network surge protective device

Material : aluminium alloy

Un : 12V

IP code : IP20

Tu : -40℃-80℃

Response time : 1n (s)

Contact Now

Data Line 1-Port Data Surge Protector IEC61643-21 Standard

Characteristics:

network surge protective device includes 100M
ethernet network lightning arrester and Gigabit ethernet network
lightning arrester.It is suitable for lightning surge or electrostatic protection of network switches,network cameras and other important equipment transmitted by wired network.

Product features
1.Core components adopt famous brands with reliable quality
2.residual low voltage
3.Simple installation and convenient maintenance

Product Details:

	BRGI-2L-12
Test standards	IEC 61643-21
Nominal voltage Un	12V
Max. continuous operating d.c. voltage Uc	15V
Max. continuous operating a.c. voltage Uc	11V
Nominal current IL	0.5A
C2 Nominal discharge current (8/20us) per line In	5kA
Voltage protection level [line-line] Up	≤40V
Voltage protection level [line-PG] Up	≤600V
Response time [line-line] tA	≤1ns
Response time [line-PG] tA	≤100ns
Operating temperature range Tu	-40℃…+80℃
Connection input / output	Terminal Block
Bandwidth	10 Mbps
Insertion Loss	≤0.3dB
Enclosure material	aluminium alloy
Degree of protection	IP20

Technology characteristic:

Aluminium Alloy Network Surge Protective Device Signal Surge Protector

Application:

• Protect expensive equipment against surges and transients entering a building on exposed

transmission lines.

• Protect electrical devices from voltage spikes.

• Protect high-speed communication network from lightning over-voltage, transient over-voltage and

static discharge.

Advantage:

• Fast energy absorption when over-voltage occurs.

• Advanced manufacturing process.

• Excellent performance on discharge current.

• Fast response time.

• Professional manufacturer.

Factory:

Certification:

FAQ:

Q1. Are you a trading company or manufacturer?

A: Manufacturer with factory!

Q2. What kinds of products do you produce?
A: It covers AC surge protection, DC lightning protection, data surge protector, LED lightning

arrester,etc.

Q3.Is customized available?
A: Yes, please offer your required specs.

Q4. Do you accept OEM service?
A: YES!

Q5. What's your Delivery Time?
A: Normally 15-30days
