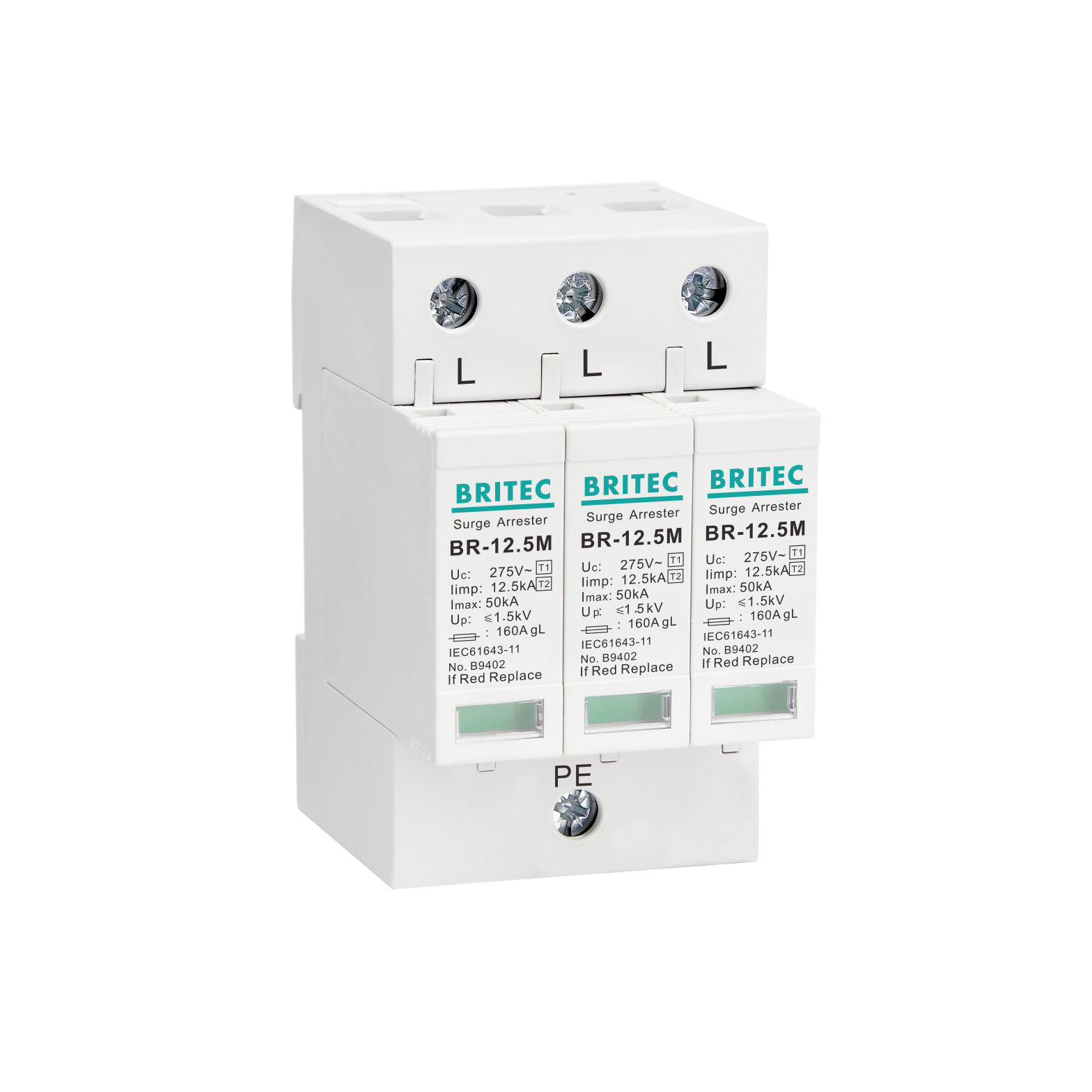

BR-12.5M 3P class I 3p 12.5kA Type 1 3 phase Surge Arrester surge suppressor SPD

Brand Name : BRITEC

Model Number : BR-12.5M 3P

Certification : TUV/CB/CE/ROHS

Place of Origin : China

MOQ : 1 Piece/Pieces

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 50000 Piece/Pieces Month

Delivery Time : Shipped in 15 days after payment

Packaging Details : EXPORT PACKING

Item Name : 50kA Surge Protective Device

Model Numbers : BR-12.5M 3P

Suitable For : To protect the systems against the transient overvoltage (lightning)

EN type : T1

Configuration : 3p

Place of Origin : Zhejiang

MOQ : 5PCS

Contact Now

3p 12.5kA type1 surge arrester 50kA Surge Protective Device lightning arrester



T1 surge arrester  Features:
1. Indicator window is obvious (green is OK, red indicates failure)
2. Fully enclosed terminal
3. The shell is made of PC flame retardant material, fire insulation
4. Replaceable module





Benefits

Easy installation

DIN rail mounting

Max nominal discharge phase 50 kA

Excellent protection for electrical panel





T1 surge arrester  Technology characteristic:

BR-12.5M 3P class I 3p 12.5kA Type 1 3 phase Surge Arrester surge suppressor SPD



  BR-12.5M 3P
Max. continuous operating a.c. voltage                              Uc 275V
Lightning impulse current (10/350us)                              Iimp 12.5kA
Nominal discharge current (8/20us)                                    In 20kA
Maximum discharge current (8/20us)                             Imax 50kA
Voltage protection level                                                      Up ≤1.3kV
Response time                                                                    tA ≤25ns
Max. backup fuse 160A
Operating temperature range                                             Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards



  IEC 61643-11, EN 61643-11

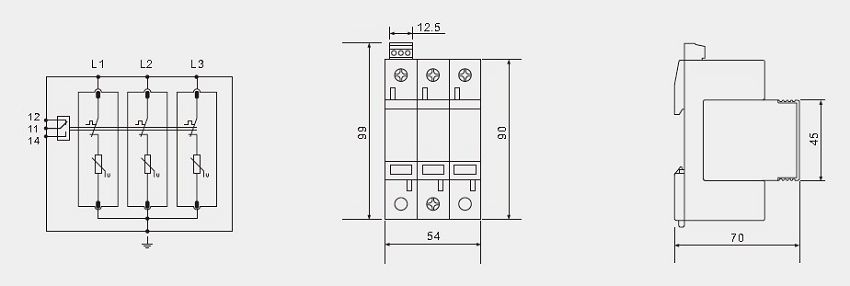

3p surge arrester  Dimension:



BR-12.5M 3P class I 3p 12.5kA Type 1 3 phase Surge Arrester surge suppressor SPD



3p surge arrester Application:

Application-optimized and prewired combined lightning current.
Particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (e.g.: buildings equipped with lightning rods).


3p surge arrester Certificate:


CB, CE, TUV,RoHS Certificate:
