Type 2 Surge Protection Device Product Description:
The Type 2 Surge Protection Device is a reliable and robust solution to protect your electrical equipment from high voltage surges. It is made from durable thermoplastic material and has a rated voltage of 230V/400V. It is suitable for DIN Rail installation and features a response time of 25ns and a screw terminal connection type.
Type 2 Surge Protection Device Features:
- Type 2 Surge Protection Device:
- Weight: 0.375kg
- Response Time: 25ns
- Rated Voltage: 230V/400V
- Dimension: 90*54*70mm
- OEM: Yes
Type 2 Surge Protection Device Technical Parameters:
| | BR150 60 3P | BR275 60 3P | BR320 60 3P | BR385 60 3P |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V |
| Nominal discharge current (8/20us) In | 30kA | 30kA | 30kA | 30kA |
| Max. discharge current(8/20μs) Imax | 60kA | 60kA | 60kA | 60kA |
| Voltage protection level Up | ≤1.0kV | ≤1.6kV | ≤1.8kV | ≤2.2kV |
| Voltage protection level 5kA Up | ≤0.5kV | ≤0.6kV | ≤1kV | ≤1.2kV |
| Max. backup fuse | 160A gG | 160A gG | 160A gG | 160A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 | IP20 | IP20 | IP20 |

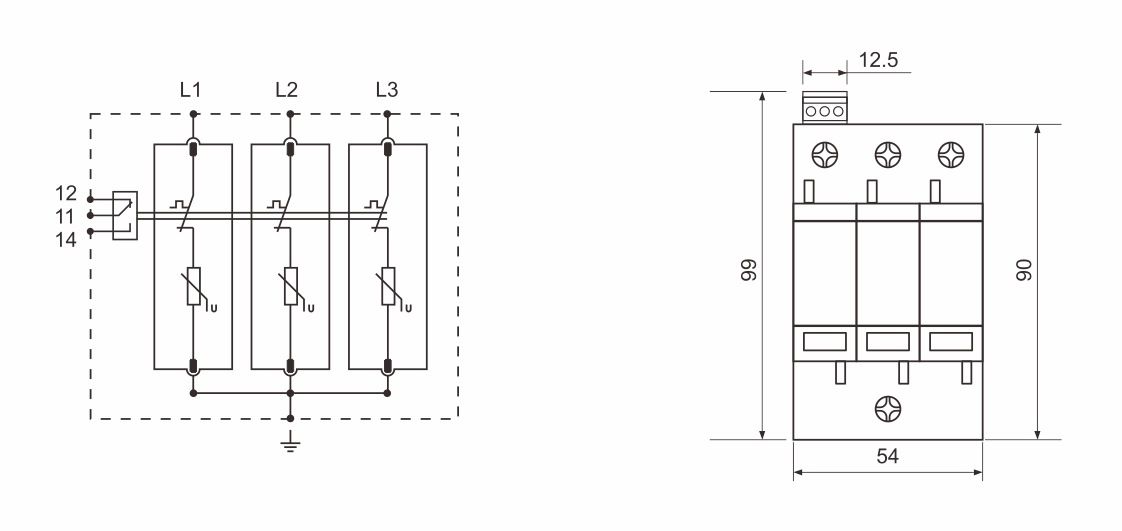

Dimension:
Type 2 Surge Protection Device Applications:
BRITEC BR-60 3P Type 2 Surge Protection Device is the perfect solution for protecting your electrical systems from voltage spikes. It is mainly used to protect the stable and safe operation of electrical equipment in thunderstorm weather.
Support and Services:
Technical Support and Service for Type 2 Surge Protection Device
We provide outstanding technical support and service for our Type 2 Surge Protection Device. Our customer service team is available to provide pre-sales advice, technical troubleshooting, and after-sales support.
Pre-Sales Support
Our customer service team is available to answer all your questions about our Type 2 Surge Protection Device. We provide comprehensive product information including product specifications, features, and pricing. We also provide installation and configuration advice to ensure the product meets your needs.
Technical Troubleshooting
If you experience any technical issues with our Type 2 Surge Protection Device, our customer service team is available to help.
After-Sales Support
Our customer service team is available to provide after-sales support. We provide advice on product use and maintenance, as well as replacement parts and accessories.
Packing and Shipping:
Packaging and Shipping of Type 2 Surge Protection Device:
The Type 2 Surge Protection Device shall be securely packaged in a strong cardboard box or carton, labelled with the type of product, supplier's name, and other relevant information. The package should be sufficiently robust to ensure that the product is not damaged during transit.
The Type 2 Surge Protection Device shall be shipped in accordance with the applicable international and national regulations.
FAQ:
Q1: What is a Type 2 Surge Protection Device?
A1: A Type 2 Surge Protection Device is an electrical device designed to protect electrical circuits from transient overvoltage. BRITEC's BR-60 3P device is designed to provide surge protection for three-phase power supply systems.
Q2: What is the minimum order quantity for BRITEC's BR-60 3P Type 2 Surge Protection Device?
A2: The minimum order quantity for BRITEC's BR-60 3P Type 2 Surge Protection Device is 100pcs.
Q3: How is BRITEC's BR-60 3P Type 2 Surge Protection Device packaged?
A3: BRITEC's BR-60 3P Type 2 Surge Protection Device is packaged in export packaging.
Q4: What is the delivery time for BRITEC's BR-60 3P Type 2 Surge Protection Device?
A4: The delivery time for BRITEC's BR-60 3P Type 2 Surge Protection Device is 20 days after receipt of deposit.
Q5: What is the payment terms for BRITEC's BR-60 3P Type 2 Surge Protection Device?
A5: The payment terms for BRITEC's BR-60 3P Type 2 Surge Protection Device is T/T.
