Product Description:
BRITEC Type 2 Surge Protection Device is designed to protect against transient overvoltage. It can respond to surges within 25ns, which ensures its rapid response to transient overvoltage. The operating temperature ranges from -40℃ to +80℃, and the relative humidity is below 95%RH, making it suitable for various harsh environments. The Type 2 Surge Protection Device provides reliable protection against surges and helps to ensure the stability of the power system. It is a perfect choice for protecting against transient overvoltage.
Features:
- Product Name: Type 2 Surge Protection Device
- Model: BR-60 1P
- OEM: Yes
- Voltage Rating: 230V/400V
- Maximum Discharge Current: 60kA
- Protection Level: Type 2
Technical Parameters:
| | BR150 60 1P | BR275 60 1P | BR320 60 1P | BR385 60 1P |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V |
| Nominal discharge current (8/20us) In | 30kA | 30kA | 30kA | 30kA |
| Max. discharge current(8/20μs) Imax | 60kA | 60kA | 60kA | 60kA |
| Voltage protection level Up | ≤1.0kV | ≤1.6kV | ≤1.8kV | ≤2.2kV |
| Voltage protection level 5kA Up | ≤0.5kV | ≤0.6kV | ≤1kV | ≤1.2kV |
| Max. backup fuse | 160A gG | 160A gG | 160A gG | 160A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 | IP20 | IP20 | IP20 |

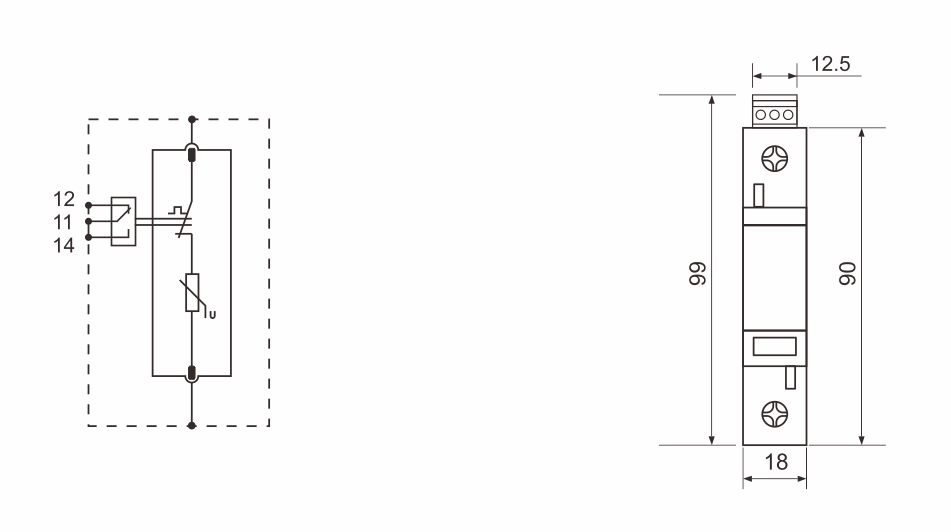

Dimension:
Applications:
BRITEC Type 2 Surge Protection Device BR-60 1P is designed to protect your electronic devices from damage caused by power surges, providing an effective protection for your home and office appliances.
Packing and Shipping:
Type 2 Surge Protection Device will be packaged in a secure and durable box to protect it during transit. Additionally, the box should be labeled with the product name, model number, and a brief description of its contents.
We recommend shipping Type 2 Surge Protection Device with a reliable delivery service such as UPS or FedEx. The shipment should also be properly labeled with the customer's name and address, as well as the package contents.
FAQ:
Q1: What is the Brand Name of this Type 2 Surge Protection Device?
A1: The Brand Name of this Type 2 Surge Protection Device is BRITEC.
Q2: What is the Model Number of this Type 2 Surge Protection Device?
A2: The Model Number of this Type 2 Surge Protection Device is BR-60 1P.
Q3: Where is this Type 2 Surge Protection Device manufactured?
A3: This Type 2 Surge Protection Device is manufactured in China.
Q4: What is the minimum order quantity for this Type 2 Surge Protection Device?
A4: The minimum order quantity for this Type 2 Surge Protection Device is 100pcs.
