Product Description:
Type 2 Surge Protection Device is a surge protector designed for protecting sensitive electronic equipment from power surges. It is made of Thermoplastic UL94-V0 material, which is fire-resistant and temperature-resistant. It offers fast response time of 25ns, making it suitable for protecting sensitive equipment from power surges. It comes in low voltage classes, making it suitable for a wide range of applications. It is also available in OEM version, making it a great choice for custom applications. The product name is Type 2 Surge Protection Device, and it is a reliable and effective surge protector for protecting your valuable equipment.
Technical Parameters:
| | BR-60 150 3+1 | BR-60 275 3+1 | BR-60 320 3+1 | BR-60 385 3+1 |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V |
| Max. continuous operating a.c. voltage[N -PE] Uc | 255V | 255V | 255V | 255V |
| Nominal discharge current (8/20us) In | 30kA | 30kA | 30kA | 30kA |
| Max. discharge current(8/20μs) Imax | 60kA | 60kA | 60kA | 60kA |
| Voltage protection level Up | ≤1.0kV | ≤1.6kV | ≤1.8kV | ≤2.2kV |
| Voltage protection level 5kA Up | ≤0.5kV | ≤0.6kV | ≤1.0kV | ≤1.2kV |
| Voltage protection level [N-PE] Up | ≤1.5kV | ≤1.5kV | ≤1.5kV | ≤1.5kV |
| Max. backup fuse | 160A gG | 160A gG | 160A gG | 160A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Response time [N-PE] tA | ≤100ns | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermal plastic UL94-V0 |
| Degree of protection | IP20 | IP20 | IP20 | IP20 |

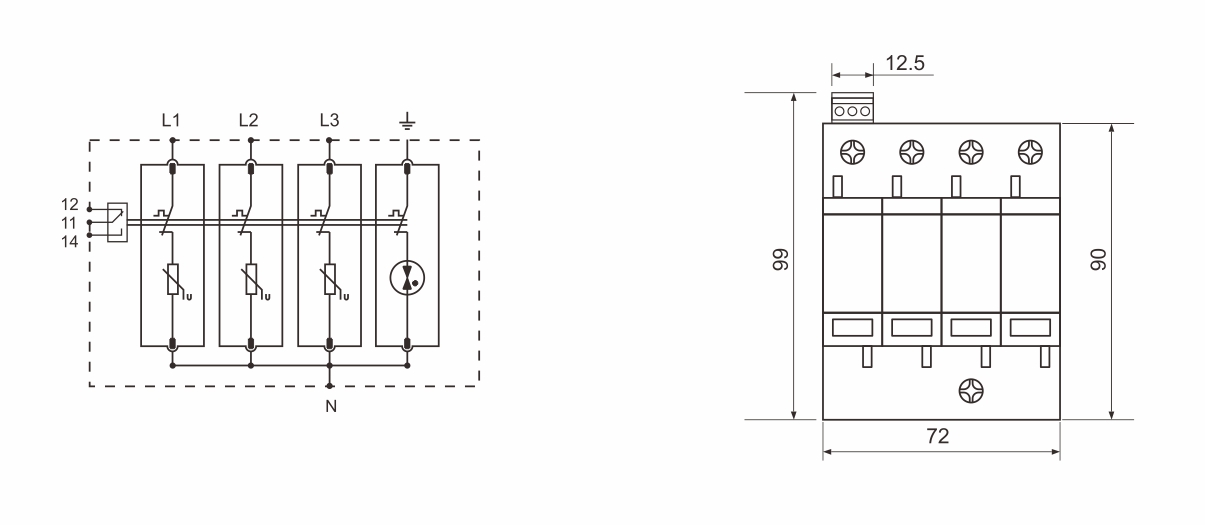

Dimension:
Features:
- Product Name: Type 2 Surge Protection Device
- Size: 90*72*70mm
- Protection Mode: Common Mode,Differential Mode
- Humidity: ≤95%RH
- Operating Temperature: -40℃~+80℃
Applications:
It is ideal for providing protection for a range of electrical systems against lightning and other power surge events. This product is suitable for low voltage applications. It is an ideal choice for lightning and surge protection.
FAQ:
Q&A about BRITEC BR-60 3+1 Type 2 Surge Protection Device
Q1: What is the brand name of this product?
A1: The brand name of this product is BRITEC.
Q2: What is the model number of this product?
A2: The model number of this product is BR-60 3+1.
Q3: Where is this product manufactured?
A3: This product is manufactured in China.
Q4: What is the minimum order quantity?
A4: The minimum order quantity is 100pcs.
