Product Description:
This Type 2 Surge Protection Device is designed for maximum protection against power surges. It features an advanced design that offers protection levels of up to IP20 and is suitable for use with a wide range of voltages, including 150V/275V/320V/385V. Furthermore, it is also available as an OEM product. This surge protector has a model number of BR-80 4P and provides reliable protection for a variety of applications.
Technical Parameters:
| | BR-80 150 4P | BR-80 275 4P | BR-80 320 4P | BR-80 385 4P |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II |
| Max. continuous operating a.c. voltage Uc | 150V | 275V | 320V | 385V |
| Nominal discharge current (8/20us) In | 40kA | 40kA | 40kA | 40kA |
| Max. discharge current(8/20μs) Imax | 80kA | 80kA | 80kA | 80kA |
| Voltage protection level Up | ≤1.0kV | ≤1.7kV | ≤2.0kV | ≤2.3kV |
| Voltage protection level 5kA Up | ≤0.5kV | ≤0.9kV | ≤1.1kV | ≤1.3kV |
| Max. backup fuse | 200A gG | 200A gG | 200A gG | 200A gG |
| Response time tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | green / red | green / red | green / red | green / red |
| Cross-section area (Min.) | 4mm2 | 4mm2 | 4mm2 | 4mm2 |
| Cross-section area (Max.) | 35mm2 | 35mm2 | 35mm2 | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 | IP20 | IP20 | IP20 |

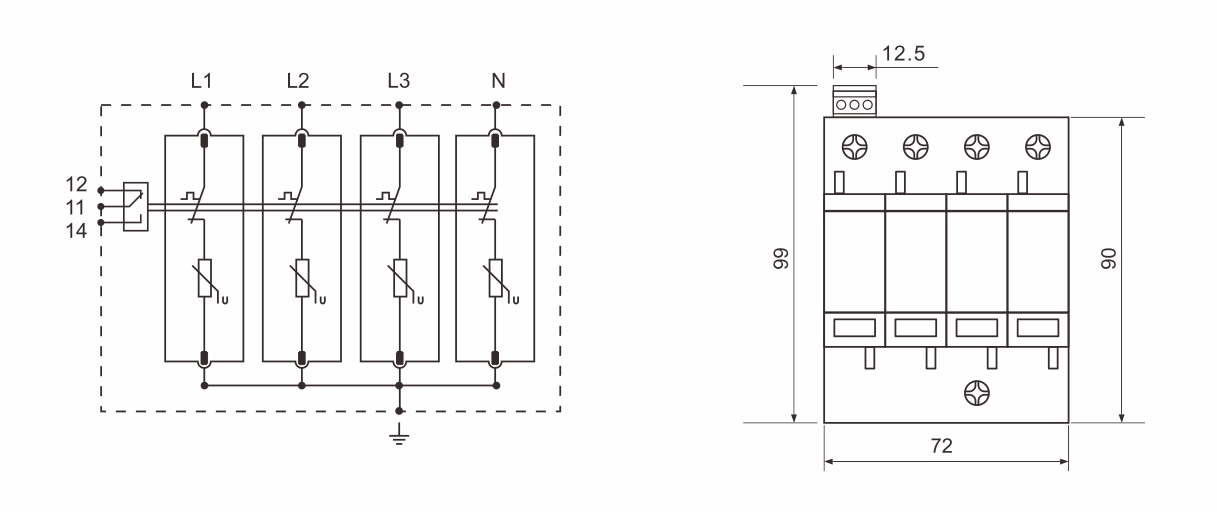

Dimension:
Features:
- Product Name: Type 2 Surge Protection Device
- Model number: BR-80 4P
- OEM: Yes
- Uc: 150V/275V/320V/385V
- Type: Type 2 Surge Protection Device
- Response Time: ≤25ns
Applications:
The Type 2 Surge Protection Device from BRITEC provides protection from dangerous voltage surges and spikes. Suitable for AC 50/60Hz system. Usually installed in the household distribution box, computer center, information equipment, electronic equipment and control.
Support and Services:
Technical support and service for Type 2 Surge Protection Device are provided by our experienced team of professionals. We will help you to identify the most suitable product for your application. Our team is highly knowledgeable in the field of surge protection devices and can provide advice and guidance. We also offer a wide range of after-sales services, including replacement of defective parts.
FAQ:
Q1: What is the Brand Name of the Type 2 Surge Protection Device?
A1: The Brand Name of the Type 2 Surge Protection Device is BRITEC.
Q2: What is the Model Number of the Type 2 Surge Protection Device?
A2: The Model Number of the Type 2 Surge Protection Device is BR-80 4P.
Q3: Where is the Type 2 Surge Protection Device made?
A3: The Type 2 Surge Protection Device is made in China.
Q4: What is the Minimum Order Quantity for the Type 2 Surge Protection Device?
A4: The Minimum Order Quantity for the Type 2 Surge Protection Device is 100pcs.
