25kA Type 1 Surge Protector 275V T1 10/350us Surge Protective Device

Britec Electric Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

25kA Type 1 Surge Protector 275V T1 10/350us Surge Protective Device

  • 1
  • 2

Brand Name : BRITEC

Model Number : BR-25GR 1+1

Certification : TUV

Place of Origin : China

MOQ : 100 Piece/Pieces

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 50000 Piece/Pieces Month

Delivery Time : Shipped in 15 days after payment

Packaging Details : EXPORT PACKING

Uc : 150V/275V/320V

Brand : BRITEC

Origin : Yueqing, Wenzhou, China

Item Name : Surge protective

Type : Ac Surge Protector

Pole number : 1+1

Iimp : 25kA

In : 25kA

Protection : IP20

Tu : -40℃-80℃

Contact Now

25kA Type 1 Surge Protector Features:


Type 1 surge protector
Simple and easy to use. More reliable and more safety.
Model: BR-25GR 1+1
Surge protect, prevents home electric network receive excessive impact while lightening.
Maximum continuous operating voltage Uc: 150VAC/ 275VAC/320VAC


25kA Type 1 Surge Protector characteristic:



Specification BR-25GR 1+1
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to EN61643-11 Class I
Max continuous 0perating a.c. voltage                                                   Uc 275V/255V
Lightning impulse current (10/350µs)                                                   limp 25kA/50kA
Norminal discharge current (8/20µs)                                                        In 25kA/50kA
Voltage protection level                                                                          Up ≤1.8kV
Short-circuit current rating a.c.                                                             lsccr 25kA rms / 100A rms
Max. backup fuse 315A gG
Response time                                                                                         tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                                                                  Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermoplastic UL94-V0

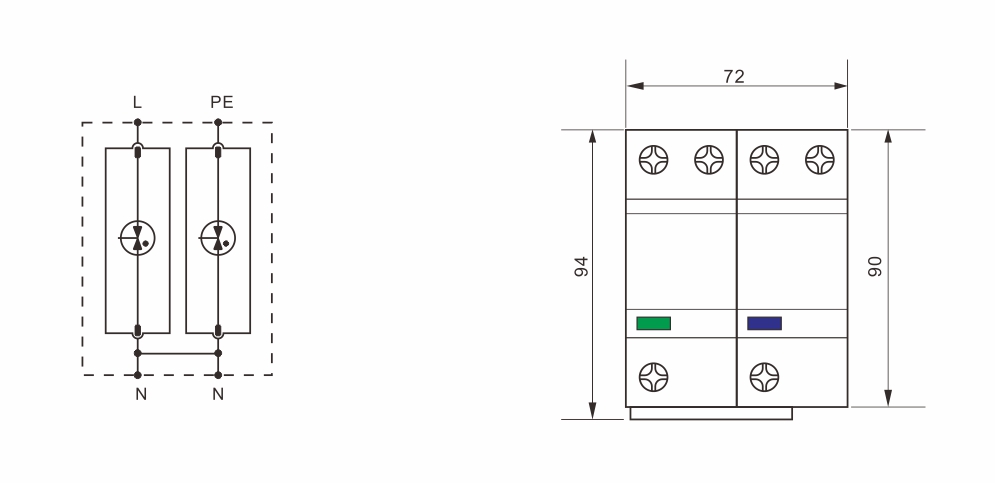

Dimension:

25kA Type 1 Surge Protector 275V T1 10/350us Surge Protective Device

25kA Type 1 Surge Protector Description:

• Impact current limp(10/350μs) : 25kA/50kA
• Nominal discharge current In(8/20μs): 25kA/50kA
• Protection level Up: 1.8kV
• Combination mode : 1P/2P/3P/4P/3+1/1+1 Optional

25kA Type 1 Surge Protector Advantage:

T1 (10/350μs) test class I surge protector
Excellent quality, fast delivery, simple after-sales. We make every effort to provide customers with satisfactory service.
It is mainly used for the first stage of lightning surge overvoltage protection in AC distribution system



Certification:



25kA Type 1 Surge Protector 275V T1 10/350us Surge Protective Device



Company information:



Holding over 17 Years of Experience. Wenzhou Britec Electric Co. Ltd has been developing, producing and marketing SPDs for more than 17 years. Our product range includes AC surge protector, DC solar surge protection device, data SPDs, Led lightning arrester etc. We have designers to keep our catalog updated. Our experienced designs are the reasons why retailers and distributors from the Europe come to us. Orders Delivered in 20 Days. We deliver your off-the-shelf and OEM orders in 30 days. We have QC inspectors to assure quality. In fact, our products passed TUV and CE standards. Send us an inquiry today to learn more.



25kA Type 1 Surge Protector 275V T1 10/350us Surge Protective Device



Test laboratory:



25kA Type 1 Surge Protector 275V T1 10/350us Surge Protective Device



Packaging & Shipping:



25kA Type 1 Surge Protector 275V T1 10/350us Surge Protective Device



FAQ:



1. What is your MOQ?

A: Usually our MOQ is 100pcs. But we accept lower quantity for your trial order. Please feel free to tell us how many pieces you need, we will calculate the cost correspondingly, hoping you can place large orders after checking quality of our products and know our service.



2. Can I get samples?

A: Sure. We usually send samples by FEDEX, UPS, TNT or DHL. If you have carrier account, it will be fine to ship with your account, if not, you can pay the freight charge to us, we will ship with our account. It takes about 7 days to reach.



3. How long is the sample lead time?

A: For existing samples, it takes 7 days. Anyway, we will response fast to your request.



4. How long is the production lead time?

A: It takes 20 days. We have large production capacity, which can ensure fast delivery time even for large quantity.



5. What format of the file do you need if I want my own design logo?

A: We have our own designer in house . So you can provide JPG,cdr or PDF, etc. We will make 3D drawing for mold or printing screen for your final confirmation based on technique.



6. Which kinds of certificate would you have?

A: TUV, CE, CB etc.



7. What is your payment term?

A: Our normal payment term is TT 30% deposite after order signed and 70% before shipping.
