1200 V Power Dc Surge Protector Characteristic:
• Discharge current In: 20kA / Imax: 40kA.
• Remote signal: optional.
• IEC 61643-31 compliance.
• With the MOV (Metal Oxide Varistor).
• Consisting of a base part and plug-in protection modules.
• Insure all protections (between + and-, + and Ground, - and Ground).
• BRPV3-1200 is a DC Surge Protection Device (SPD) for medium risk DC power applications up to 1200Vdc.
• Combined disconnection and short-circuiting device with safe electrical isolation in the protection module prevents fire damage resulting from d.c. switching arcs.
| 3 Mod | BRPV3-1200 |
| SPD classification according to EN61643-31 | Type 2 |
| SPD classification according to IEC61643-31 | Class II |
| Max. continuous operating dc voltage Ucpv | 1200V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level [(DC+/DC-)→PE] Up | ≤4.0kV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |

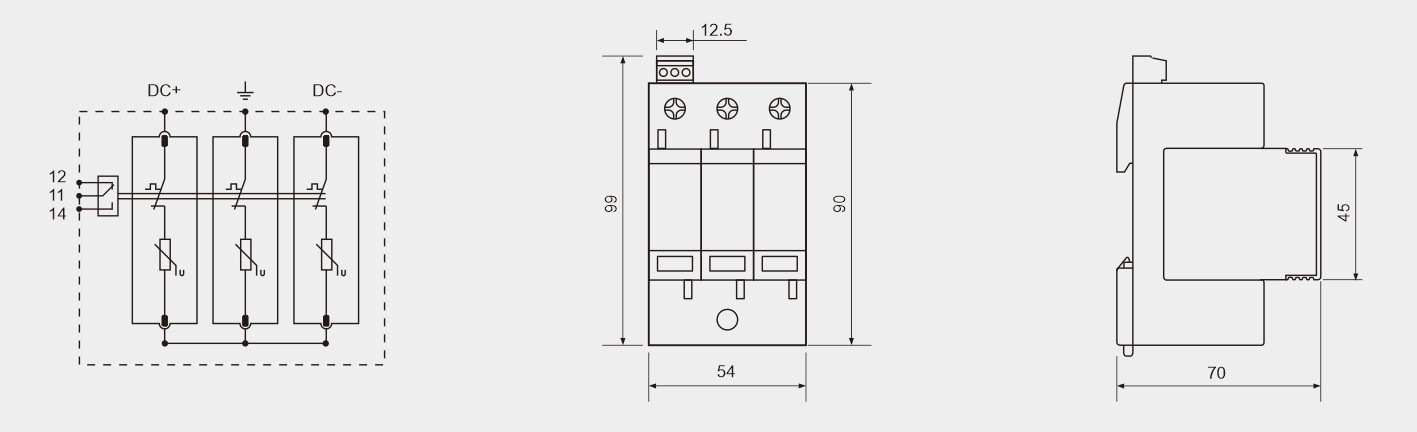

Dimension:
1200 V Power Dc Surge Protector Application:
• For use in Photovoltaic applications.
• Provides protection against the direct and indirect effects of lightning.
• Protect against lightning surge voltages in photovoltaic power supply networks.
• Suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection, the maximum continuous operating voltage DC 1200v.
1200 V Power Dc Surge Protector Installation:
• Installation position in the dc power supply system.
• These units must be installed in parallel on the DC networks to be protected and provide common and differential modes protection.
