Type 1 Class B Spd Surge Protector 25KA 4P 385Vac Class I High Power

Name: Type 1 Class B Spd Surge Protector 25KA 4P 385Vac Class I High Power
Brand: BRITEC
Price: 1 USD

Buy cheap Type 1 Class B Spd Surge Protector 25KA 4P 385Vac Class I High Power product

Brand Name : BRITEC

Model Number : BR-25GR 4P

Certification : CE

Place of Origin : China

MOQ : 100 Piece/Pieces

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 50000 Piece/Pieces Month

Delivery Time : Shipped in 15 days after payment

Packaging Details : EXPORT PACKING

Item Name : Power surge protection

Place of Origin : Zhejiang, China (Mainland)

Model Numbers : BR-25GR 4P

Uc : 385V

Safety Standard : IEC61643-1

Pole number : 4P

Iimp : 25kA

In : 25kA

Imax : 100kA

Contact Now

Type 1 Class B 25KA 4P 385Vac Class I High Power Surge Protector

Type 1 Class B Spd Surge Protector Features:

• Surge arrestor.

• The single module impact current can reach a maximum of 25KA (10 / 35us), which can prevent various electric surges including direct strikes.

• High arresting capacity.

• The connecting rail adopts 4-35mm² multi-strand copper soft wire.

• Visual status display.

• Simple standard hat rail mounting.

• Labeled connections.

• Energy saving, environmental protection, easy installation, no special maintenance.

Type 1 Class B Spd Surge Protector Technology characteristic:

	BR-25GR 4P
Max. continuous operating a.c. voltage Uc	385V
Thunderbolt Protection Area	0→1
Voltage protection level Up	≤1.8kV
Response time tA	≤100ns
Lightning impulse current (10/350us) Iimp	25kA
Nominal discharge current (8/20us) In	25kA
Operating temperature range Tu	-40℃—80℃
Air humidity	≤95%
Degree of protection	IP20
For mounting on	35mm Din rail

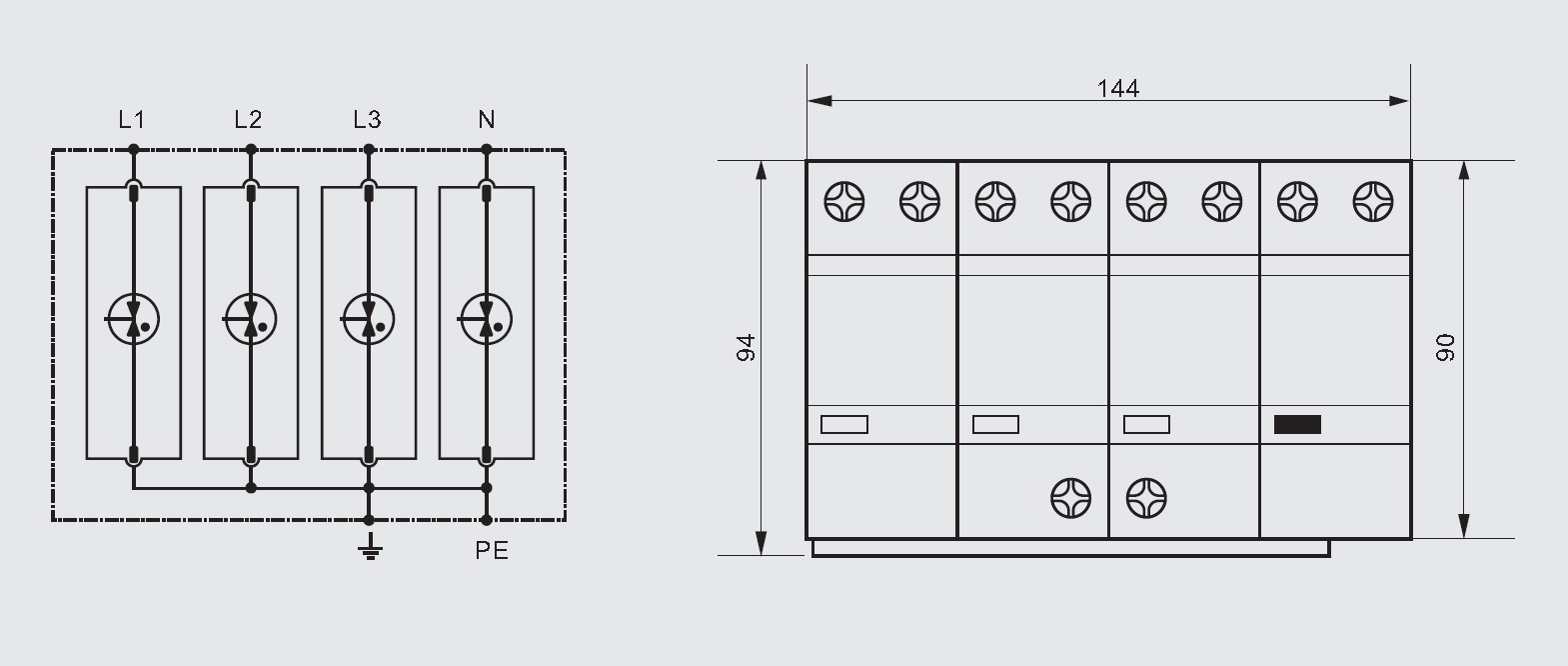

Dimension:

Type 1 Class B Spd Surge Protector 25KA 4P 385Vac Class I High Power

Type 1 Class B Spd Surge Protector Application:

The product is installed at the junction of LPZO or LPZOB and LPZ1 area, or at the main distribution box where the power supply is introduced.

Company Information:

Britec is located in Yueqing city, which is on the coast of the East China Sea. It is a professional manufacturer engaged in the development, production, sales and service of surge protection devices. Equipped with domestic advanced production lines and sophisticated testing equipment.

Type 1 Class B Spd Surge Protector 25KA 4P 385Vac Class I High Power

Factory:

Shipping:

Certificate:

FAQ:

Q1: Are you a factory or trading company?

A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2: How does your factory do regarding quality control?

A2: All the products will be 100% checked before the shipment.

Q3:Can I have a visit to your factory before the order?
A3: Welcome! Our factory address: Block 1, BoTongHuiGu Industrial Park, Yueqing Economic Developement Zone, Yueqing, Zhejiang, China.
