Telephone Line Surge Protector 170V 10KA RJ11 4-port Ethernet Surge Protection
Feature:
• RJ11 telephone port electric surge protector.
• Aluminum structure.
• Operating voltage: 170 V.
• Number of ports RJ11: 4 ports.
• RJ11 connectors for input/output.
• Able to hold up nominal discharge currents of 10kA for each line.
Product Details:
| | BRRJ11-4 |
| Test standards | IEC 61643-21 |
| Nominal voltage Un | 110V |
| Max.continuous operating d.c.voltage Uc | 170V |
| Max.continuous operating a.c.voltage Uc | 120V |
| Nominal current IL | 0.5A |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤250V |
| Voltage protection level [line-PG] Up | ≤600V |
| Response time [line-line] tA | ≤1ns |
| Response time [line-PG] tA | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ |
| Connection (input/output) | RJ11 socket |
| Protect The Port Quantity | 4 port |
| Bandwidth | 10 Mbps / 30 Mbps |
| Insertion Loss | ≤0.3dB |
| Enclosure material | aluminium alloy |
| Degree of protection | IP20 |

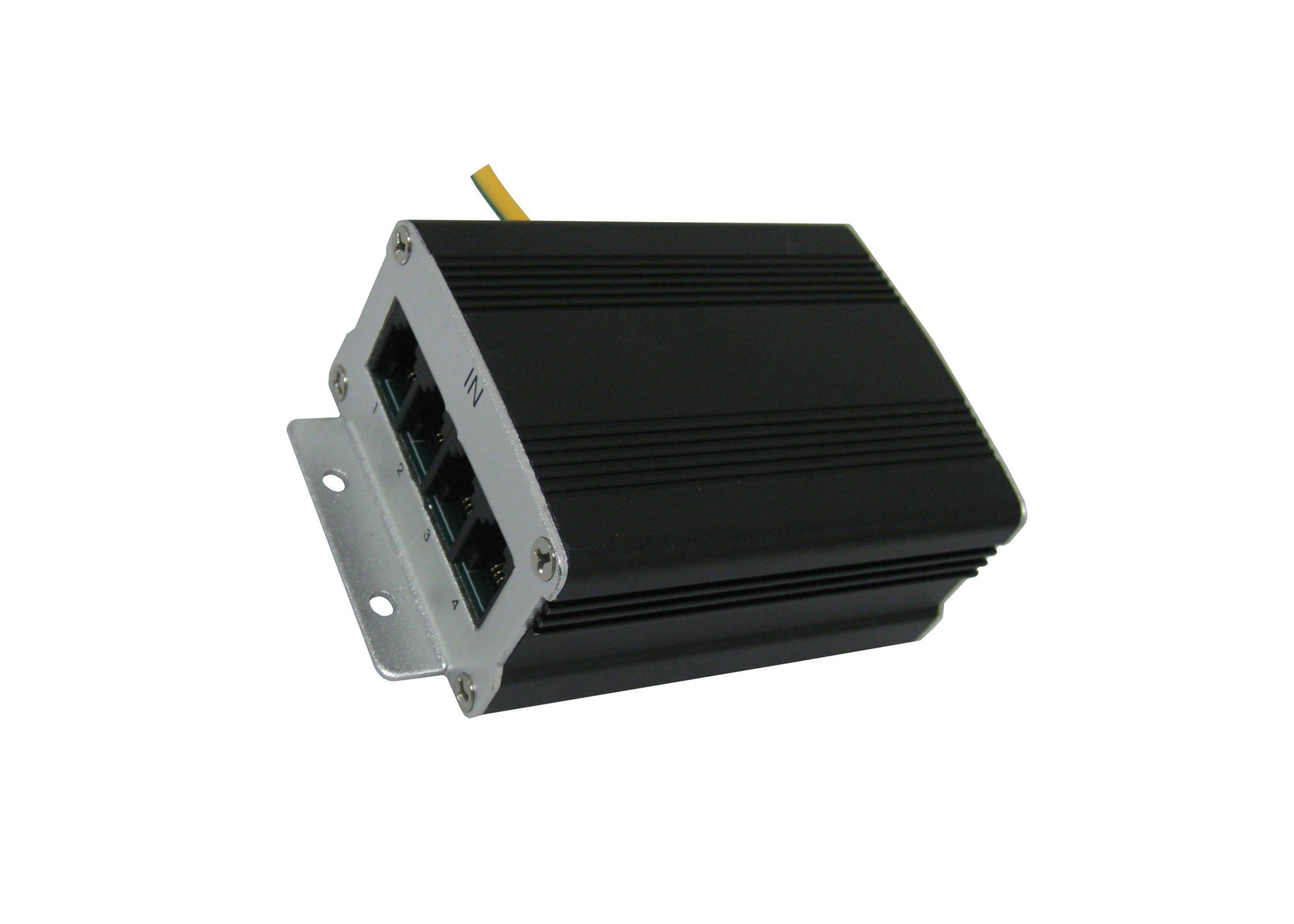

Product view:
Application:
• Protects from voltage spikes and electrical surges, induced by lightning, power line parasites, and
other factors.
• Applied to the surge protection for telecommunications, e.g. SPC exchangers, twisted pairs of
telephone stations, dial-up lines, DDN special line.
• Protection for telephone lines and also for the digital and analogical equipment connected to these
lines (fax, modem, etc.).
Advantage:
• Low-volume design.
• Excellent transmission performance.
• Large intake capacity.
• Long life time.
• Easy install.
• Simple maintenance.
• Quick response.
Installation:
• The lightning protection devices are installed between signal channel and the protected device, the
output termination is connected with the protected equipment.
