Product characteristics:
| | TYB-100 |
| Working Voltage Un | 380V |
| Max. Continuous Operating Voltage Uc | 385V |
| Operating frequency Hz | 47~63Hz |
| Nominal Discharge Current (8/20μs) Ιn | 50kA |
| Max. Discharge Current (8/20μs) Imax | 100kA |
| Protection Mode | L1 / L2 / L3 - N, N - PE |
| Voltage Protection Level Up | ≤2.8KV |
| Response Time tA | ≤25ns |
| Connection | Parallel |
| Standard | Q/70924537-1.01-2000, GA173-2002, YD/T5098-2001 |
| Indication | Green / Red |
| Operating temperature range Tu | -40℃~+85℃ |
| Relative humidity | 5%~95% |
| Atmospheric pressure | 74.8kPa~106kPa |

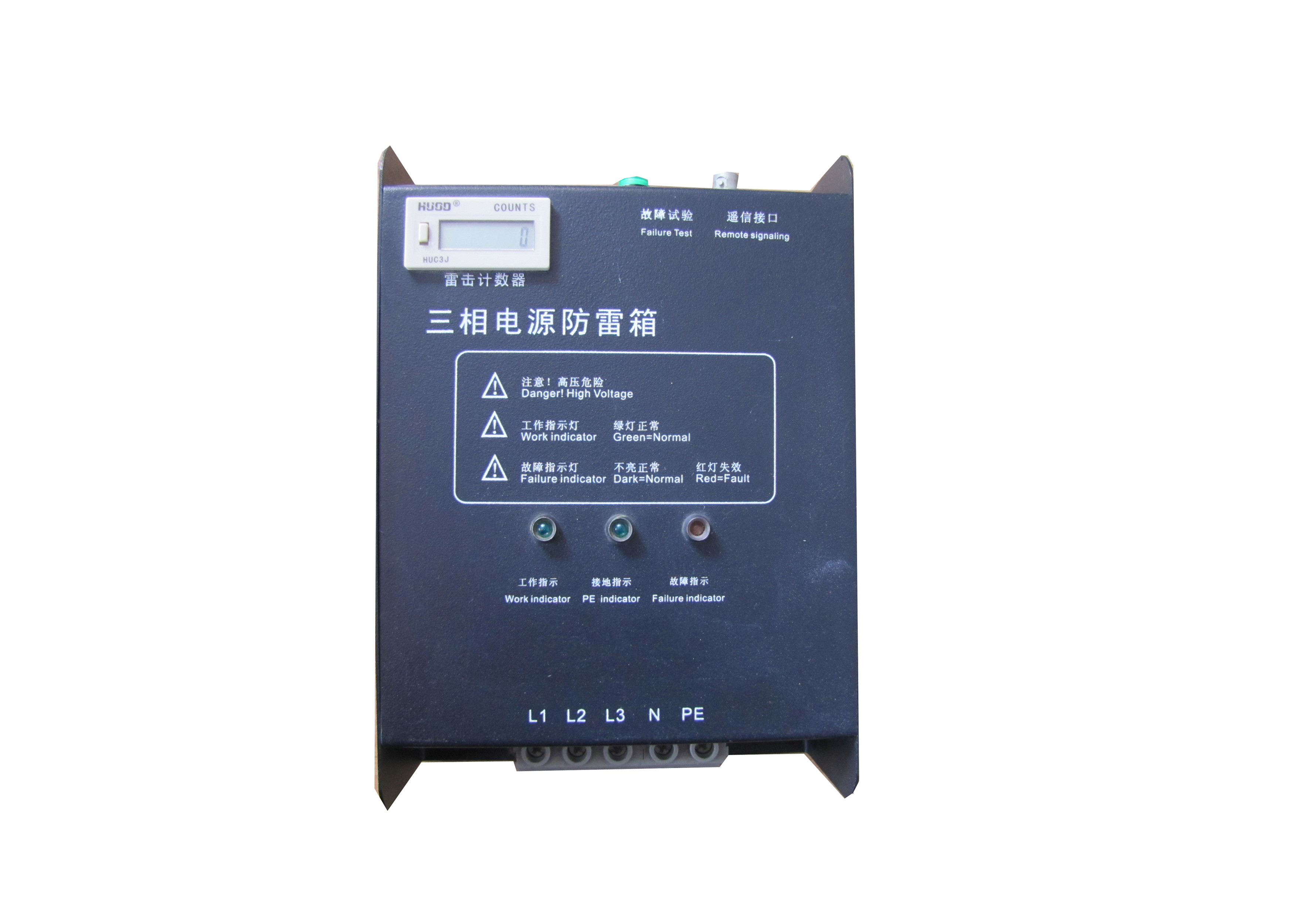

Product view:
Application:
• Used as a lightning protection device at the front of a 230V three-phase AC power supply system.
• Used in the fields of meteorology, transportation, post and telecommunications, computer network,
electronics, residence, railway and petrochemical industry, so as to effectively prevent the harm of
over voltage to electrical equipment.
Advantage:
• Advanced design and maintenance.
• Continuous anti lightning ability.
• Failure indication description.
• Lower residual voltage.
Noted:
• When the lightning protection SPD in the box is deteriorated, the remote signal alarm by the
instruction lamp, indicating that the lightning protection box has no protection ability and needs to be
replaced immediately.
