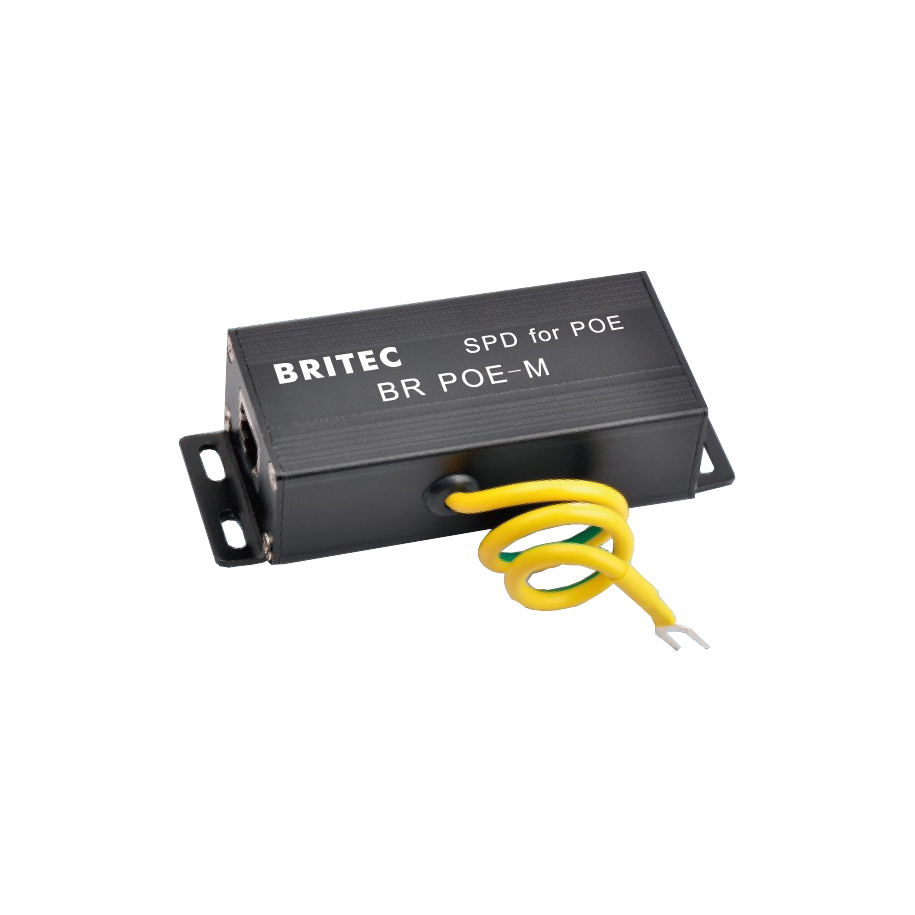

SPD 48V RJ45 POE Ethernet data Surge Protection Devices Ethernet SPD rj45 lightning arrester network

Name: SPD 48V RJ45 POE Ethernet data Surge Protection Devices Ethernet SPD rj45 lightning arrester network
Brand: BRITEC
Price: 1 USD

Buy cheap SPD 48V RJ45 POE Ethernet data Surge Protection Devices Ethernet SPD rj45 lightning arrester network product

Brand Name : BRITEC

Model Number : BR-POE-M

Certification : CE

Place of Origin : China

MOQ : 1 piece / pieces

Payment Terms : T/T

Supply Ability : 50000 pieces per month

Delivery Time : 15-20 days after payment

Packaging Details : EXPORT PACKING

Supplier Type : Original Manufacturer

Packing unit : 1 pc

Shipping term : TNT DHL FEDEX EMS UPS

MOQ : 1PCS

IP code : IP20

Color : white

Interface form : RJ45 terminal block

Warranty : 5 Years

Contact Now

Ethernet network Power System SPD 48V RJ45 POE surge protector

RJ45 POE surge protector Product Details:

Specification		BR-POE-M
Test standards		IEC 61643-21
SPD class		TYPE2 P1
Norminal voltage	Un	48V
Max. continuous operating d.c. voltage	Uc	48V
Max. continuous operating a.c. voltage	Uc	34V
Max. continuous operating d.c. voltage pair-pair(PoE)	Uc	57V
Nominal current	IL	1A
D1 Lightning impulse current (10/350 μs) per line	Iimp	0.5kA
C2 Norminal discharge current (8/20μs) line-line	In	150A
C2 Nominal discharge current (8/20μs) line-PG	In	2.5kA
C2 Total nominal discharge current (8/20μs) line-PG	In	10kA
C2 Nominal discharge current (8/20μs) pair-pair(PoE)	In	150A
Voltage protection level pair-pair for In C2	Up	≤180V
Voltage protection level line-PG for In C2	Up	≤500V
Voltage protection level line-line for In C2(POE)	Up	≤600V
Insertion loss at 250 MHz		≤3dB
Capacitance line-line	C	≤30pF
capacitance line-PG	C	≤25pF
Operating temperature range	Tu	-40℃-80℃
For mounting on		35mm DIN rails acc. to EN 60715
Connection (input/output)		RJ45 socket/RJ45 socket
Pinning		1/2, 3/6, 4/5, 7/8
Earthing via		35mm DIN rails acc. to EN 60715
Enclosure material		polyamide PA 6.6
Degree of protection (plugged-in)		IP10

Product Description:

SPD 48V RJ45 POE Ethernet data Surge Protection Devices Ethernet SPD rj45 lightning arrester network

Dimension:

SPD 48V RJ45 POE Ethernet data Surge Protection Devices Ethernet SPD rj45 lightning arrester network

POE Surge Protector (Gigabit)

Power over Ethernet protector is designed for POE power supply equipment, are widely used in the areas of wireless coverage, security monitoring, etc. to protect the communication equipment's POE port line from the impact of lightning Electromagnetic pulse, lightning electromagnetic pulse, switching overvoltage.

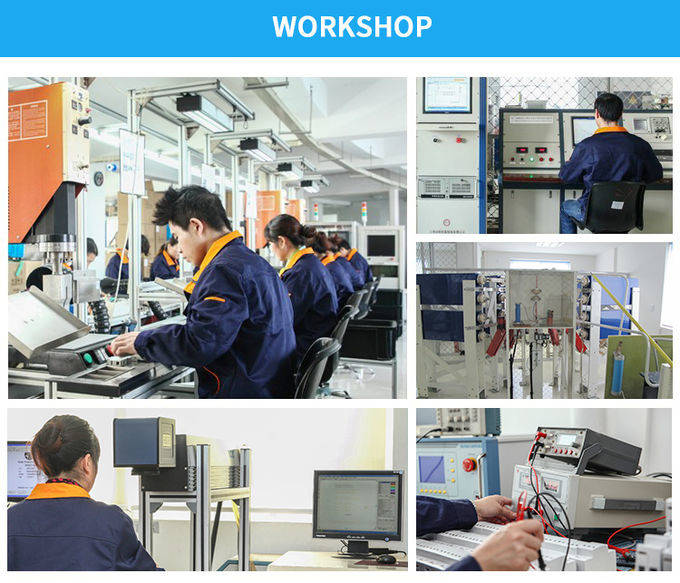

Workshop:

Britec owns advanced test equipments and product line, perfect management, professional technical

personnel and well-trained workers. Britec team keep developing newest product for our customer, that

is why technical level of our products can be reached to the leading level, we also can help customer

OEM/ODM.

SPD 48V RJ45 POE Ethernet data Surge Protection Devices Ethernet SPD rj45 lightning arrester network

Company Information:

Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD)

manufacture with many years experiences.We are providing quality products, competitive price, prompt

delivery and excellent service, and looking forward to even greater cooperation with overseas trade

based on mutual benefits.

SPD 48V RJ45 POE Ethernet data Surge Protection Devices Ethernet SPD rj45 lightning arrester network

Exhibition:

Britec have strong sales team, our surge protection device are sold to many countries around the world.

Europe and Asia are our main market. We would like to cooperate with global customers and help you

success in your market.

SPD 48V RJ45 POE Ethernet data Surge Protection Devices Ethernet SPD rj45 lightning arrester network

Certifications:

Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company

implements ISO9001 quality mangement system.

SPD 48V RJ45 POE Ethernet data Surge Protection Devices Ethernet SPD rj45 lightning arrester network

Product Uses:

Britec have developed a wide range of products mainly covering requirements in the area of low voltage

lightning protection, such as SPD for power system,PV system and data , etc. All these products have

been widely applied in electronic system, computer network and security system, protection for power

industry, petroleum chemical industry and national defense industry.

SPD 48V RJ45 POE Ethernet data Surge Protection Devices Ethernet SPD rj45 lightning arrester network

FAQ:

How about your experience?

We have our own factory and in-house test laboratory, our R&D department have more than
20 years experiences.

What's your advantage?

Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.
Qulaity recognized :cooperate with transnational company.

Is custom design package acceptable?

Inner box and out carton are made as per international standard.
We can make packaging according to customer's need.

Could you do OEM for us?

Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.

How about warranty?

5 years.

Could I buy 1pc sample first and small order?

Of course,support sample order, especially for new customers under certain condition.

How long make a sample?

7-10 days.

How does your company do regarding the quality control?

Quality is priority. We always attach great importance to quality control from the beginning to the end of

the production. IQC inspects the components, the patrol inspection is done during production and all the

goods to be tested 100% before leaving the factory..
